Development of a high-performance open-source 3D bioprinter

A plastic printer can be converted into a bioprinter

[****]There are several steps involved in converting a 3D printer made of plastic into a bioprinter. These steps generally follow the same sequence (Fig. 1). First, the electronic and control systems of the plastic printer need to either be modified or replaced. The FlashForge Finder motion controller circuit board (Fig. 2A, the green rectangle) has been replaced by the open-source Duet 2 WIFI motion control circuit board (Fig. 2B, blue rectangle). This is done to increase the motion control performance, enable WiFi access, and facilitate quick firmware customization via the Duet web-based interface. These instructions are for FlashForge Finder. They can also be adapted to most desktop 3D printers (details in Supplementary Figs). S1–S15, and provided Duet2 WiFi configuration files). The thermoplastic extruder included with the printer will be replaced by the Replistruder 4 which is an open-source, high performance syringe pump extruder.14. The majority of the parts of Replistruder 4 can be 3D printed from plastic and assembled with commonly available hardware (Fig. 2C). The carriage platform was created to mount the Replistruder on existing linear motion components. This carriage for the X axis has pockets to mount the bearings on the X axis linear rails. It also includes channels for routing and maintaining the X axis belt. To allow the Replistruder 4 attachment to the Xaxis carriage, four mounting points have been provided with recessed M3 hexagon nuts (Fig. 2D). The thermoplastic printhead that comes pre-installed on the Finder is replaced with the X-axis carriage/Replistruder 4 assembly (Fig. 2E,F, more details in Supplementary Figs. S16–S23). After these steps are complete, the Replistruder 4(Fig. The Replistruder 4 (Fig. 2G yellow an arrow) and the motors are connected with the Duet 2 WIFI, which can be found in the back of the bioprinter. 2H, green arrow). These modifications transform the FlashForge Finder into an open-source bioprinter that features a high-performance extruder with motion control and a motion control system.

Figure 1.
[****]Here are the steps to convert a plastic printer to be a bioprinter. The plastic extruder printhead and the motion control board of the plastic printer are switched to a syringe pump extruder and Duet2 WiFi control board, respectively. The Duet2 wifi is now configured to run the bioprinter. To bioprint, the desired 3D model is sliced into machine pathing (G-code generated with Cura Ultimaker software) and then Duet Web Control executes the print using the desired bioink. BioRender.com was used to create the figure.

Figure 2
figure 2
[****]Converting FlashForge into a Bioprinter (A) The original motion control board and wiring (green rectangle). (B) The motion control board is replaced with the Duet 2 WiFi motion control board (blue rectangle). (C) The Replistruder 4 syringe pump extruder is printed and assembled. (D) The X-axis carriage for the FlashForge Finder is 3D printed and the Replistruder 4 is mounted to it. (E) Top-down view of the Finder’s plastic extruder printhead that is to be removed. (FAfter it has been mounted in the printer, a top-down view shows the Replistruder 4. (G) Additional view showing that the plastic extruder printhead has been replaced with a Replistruder 4 syringe pump extruder (blue arrow) mounted to a custom X-axis carriage (yellow arrow). (H) The Duet 2 WiFi is mounted in a 3D printed case covered in the back cabinet of the Finder (green arrow).

[****]Duet 2 WiFi offers several key advantages over stock motion control circuit boards in the FlashForge Finder or other low-cost desktop 3D printing machines. First, the Duet’s WiFi based web interface allows for easy, in-browser access to printer movement, file storage and transfer, configuration settings, and firmware updates. This is in contrast with most 3D printers where editing configuration settings requires flashing motion control board firmware via 3rd-party software. Inexperienced users may find this daunting and difficult. This could result in accidental firmware changes and corruption. Second, the Duet 2 adds many advanced motion control improvements including (i) a 32-bit electronic controller, (ii) high performance Trinamic TMC2260 stepper controllers, (iii) improved motion control with up to 256 × microstepping for 5 axes, (iv) high motor current output of 2.8 A to generate higher power, (v) an onboard microSD card reader for firmware storage and file transfer, and (vi) expansion boards adding compatibility for 5 additional axes, servo controllers, extruder heaters, up to 16 extra I/O connections, and support for a Raspberry Pi single board computer. You can also access the Duet 2 WiFi setup online. The documentation is updated regularly and supported by an active user community. We provide a step by step guide to the Duet 2 WiFi setup and hardware conversion. However, anyone wishing to do more modifications to the Duet3D documentation is recommended. This combination provides high precision motion control and expandability. It also includes an easy-to use web interface that allows rapid customization and improves performance over standard desktop plastic printers.

Mechanical performance of a 3D bioprinter

[****]To determine the 3D bioprinter’s build volume, the X-, Y-, and Z axis travel limits were determined after conversion. For the X-axis travel is 105 mm, for the Y-axis travel is 150 mm, and for the Z-axis travel is 50 mm, resulting in an overall build volume of 787.5 cm3 (Fig. 3A). Stepper motor driven motion systems, such as this 3D Bioprinter and most commercial 3D Printers, have one parameter that is crucial to their performance. This parameter is the steps per.mm calibration of each axes. This number is used to determine how many pulses (or steps) must be sent to each stepper motor to move each axis precisely one millimeter. The formula for the X- and Y-axes, which have belt drive, is (steps/mm=(steps/rotationtimes microsteps)/(belt pitchtimes pully teeth)). For the Finder these parameters are the nominal pitch of the driving belt (2 mm), the number of teeth in the motor’s pully (17 teeth), the number of steps in a full rotation for the motor (200 steps), and the number of microsteps that the Duet 2 WiFi interpolates between the full steps (set to 64 microsteps). In this example, the nominal steps/mm are 376.5 for the X-axis and Y axes. The formula is the same for the Z-axis which uses a leadscrew. (steps/mm=(steps/rotationtimes microsteps)/(screw pitchtimes screw starts)). The finder uses a 4 start, 2 mm pitch lead screw so the nominal steps/mm for 16 × microstepping is 400 steps/mm.

Figure 3
figure 3
[****]Measurement and correction for printer travel. (A) The X-axis travel is 105 mm, the Y-axis travel is 150 mm, and the Z-axis travel is 50 mm. (B) The error of travel for the X-axis across a 10 mm window before correction (red) and after correction (blue). (C) The error of travel for the Y-axis across a 10 mm window before correction (red) and after correction (blue). (D) The error of travel for the Z-axis across a 10 mm window before correction (red) and after correction (blue).

[****]There are several specifications that you need to take into account when comparing 3D printer performance. These specifications directly relate to print quality. Many thermoplastic 3D printers include specifications for resolution. This refers to the smallest steps the printer can take in any given direction. Table 1 lists the reported numbers for both the FlashForge Finder as well as several commercially-available bioprinters. Additional details regarding the motion system include positional error (the absolute deviation of the current location for the FlashForge Finder from the intended location) and repeatability (the maximum absolute deviation in measured positions from the average measured location when trying to reach the position multiple times). These metrics are not commonly used in bioprinting and may vary depending on the mechanical components and assembly quality. Bioprinter specifications generally provide ideal resolutions that are based on the nominal dimensions of the pulleys, gears and screws that were used to assemble a motion system. None of these manufacturers offer measurements of actual resolution. This is either error over the entire distance traveled or repeatability. These measurements are often provided by ultra-high-end motion platforms like those offered by Aerotech and Physik Instrumente.28,29. It is important to measure the travel using an external tool in order to determine the performance of these low-cost 3D printer-based systems.

Table 1: Reported resolutions for FlashForge Finder, commercial bioprinters.

[****]To verify that the nominal steps/mm values were correct, we quantified positional error of our system along each axis near the center of travel with 2 µm precision. The nominal steps/mm values showed a systematic undertravel for the X-axis (Fig. 3B, red curve. Using the maximum error at 10 mm of travel we determined the number of missed steps per mm and corrected the value, and with this corrected steps/mm the average travel error over the 10 mm window was 7.9 µm (Fig. 3B, blue curve The Y-axis was subject to systematic under-travel according to the nominal steps/mm (Fig. 3C, red curve) and after correction this was reduced to 29.1 µm (Fig. 3C, blue curve. Finaly, the Z-axis was subject to systematic under-travel according to the nominal steps/mm (Fig. 3D, red curve) and after correction was reduced to 32.3 µm (Fig. 3D, blue curvature. The values also enable calculation of the unidirectional repeatability, which is the accuracy of returning to a specific position from only one side of the axis (e.g., from 0 to 5 mm) and the bidirectional repeatability, which is the accuracy of returning to a specific position from both sides of the axis (e.g., from 0 to 5 mm and from 10 to 5 mm). For the X-axis, the unidirectional repeatability was 3.9 µm, and the bidirectional repeatability was 16.4 µm. For the Y-axis, the unidirectional repeatability was 11.5 µm, and the bidirectional repeatability was 63.9 µm. For the Z-axis, the unidirectional repeatability was 8.7 µm, and the bidirectional repeatability was 38.7 µm. Together these measurements demonstrate that with calibration the travel of our converted bioprinter had a maximal error of 35 µm and repeatability in worst case situations of 65 µm. Whereas before calibration there was a linearly increasing error in position, after calibration this error is significantly decreased. This calibration, or at the very least the measurement of errors, is essential to determine whether flaws in printed structures are caused by the printer or other factors.

Bioprinter printing fidelity:

[****]Fidelity and resolution of printed constructs are typically not quantified for 3D bioprinters because they cannot print bioinks in a manner approaching the mechanical limitations of the systems. However, advances in embedded bioprinting techniques like FRESH have allowed for some remarkable improvements.13, it is now possible to perform extrusion bioprinting with resolutions approaching 20 µm. Thus, to demonstrate bioprinter printing performance we generated a square-lattice scaffold design consisting of 1000 and 500 µm filament spacing (Fig. 4A) To measure the accuracy of FRESH printing using a collagen type 1 bioink (Fig. 4B). 3D volumetric images were taken using optical coherence imaging (OCT) to measure grid spacing (Fig. 4C)30This revealed a good agreement between the measured and as-designed dimensions (Fig. 4D). Following this was a more complex design, based upon a 3D scan (Fig. 4E). This model was printed with collagen (Fig. 4F). To assess the accuracy, we took a 3D volumetric picture of the printed ear with OCT (Fig. 4G, Supplementary Figure. S24)30. The 3D reconstruction demonstrates recapitulation of the features of the model and 3D gauging analysis revealed a deviation of − 29 ± 107 µm (mean ± STD) between the FRESH printed ear and the original 3D model (Fig. 4H)30. These two examples show that the standard deviation and average error of printed scaffolds is within the limitations of the bioprinter built and are comparable to commercial bioprinters.31.

Figure 4
figure 4

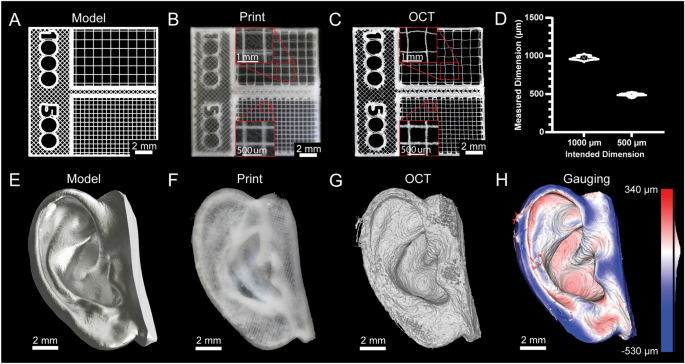

[****]Printing geometrically accurate grids and organic forms. (A) Model of a gridded scaffold with 500 µm and 1000 µm grids. (B) Photograph of the gridded scaffold printed in collagen type I. (C) An OCT image of the gridded scaffold print. (D) Analysis of the accuracy of the gridded scaffold print (mean ± STD.; n = 11 measurements for 1000 µm grid, n = 26 measurements for 500 µm grid, p < 0.0001 [****] for 1000 µm compared to 500 µm by Student’s two-tailed, unpaired t-test). (E) A 3D model of an ear. (F(A photograph of an ear printed in collagen type 1 (GA volumetric OCT image of the printed ear. (H) Quantitative gauging of the ear print against the original 3D model.
